Compact Digital Oscilloscope with Integrated Signal Generator

Integrated Signal Generator for Streamlined Testing

Imagine diagnosing a malfunctioning circuit without the hassle of multiple tools. With our oscilloscope, you can swiftly identify where the signal falters, allowing you to focus on solutions rather than wasting time on unnecessary guesswork. Perfect for testing at your workstation, troubleshooting in the field, or demonstrating live signals during educational sessions, this device eliminates the need for cumbersome equipment.

Simply press the AUTO button, and the oscilloscope instantly locks onto your signal, displaying it clearly on a vibrant 2.8-inch screen without any manual setup. With three versatile trigger modes, you can easily capture consistent repeating waves, single-trigger events, or erratic signals, depending on your specific diagnostic needs. The integrated signal generator provides test cycles, allowing you to verify your setup and confirm responses directly from the device, eliminating the need for additional tools.

The standard model offers a sampling rate of 5 million samples per second and a bandwidth of 1 million cycles, making it ideal for everyday diagnostics. For more demanding tasks, the pro version boosts the performance to 48 million samples per second and a bandwidth of 10 million cycles, ensuring you can tackle complex signals efficiently. Both versions are equipped to safely measure voltages up to 400 volts, featuring built-in protection that prevents any potential damage to the oscilloscope.

Powered by a 1000mAh battery, this oscilloscope provides up to four continuous hours of use, enabling you to complete lengthy projects without searching for a power source. Its compact design makes it easily portable—fit it in the palm of your hand or attach it to a lanyard for convenience on the go. Additionally, the pro model comes with a 100 million cycle passive probe and adapter, ensuring advanced users can start working right away without additional purchases.

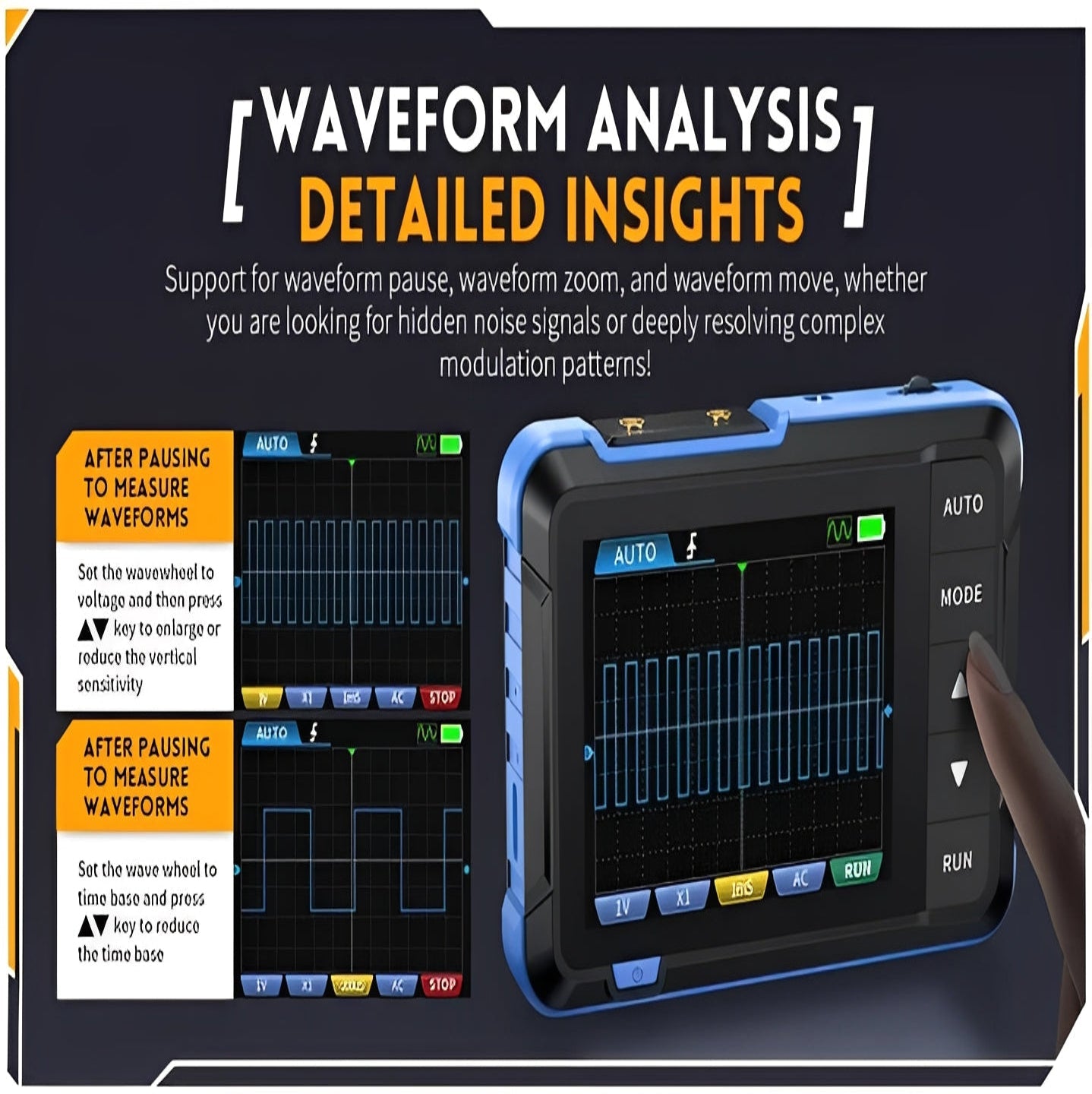

• ONE-TOUCH AUTO LOCK: Pressing the AUTO button allows the device to automatically detect and display your signal on the 2.8-inch screen, removing the need for manual adjustments.


• THREE TRIGGER MODES: Capture steady signals, one-time events, or irregular waveforms, tailored to meet your tracking requirements.


• INTEGRATED SIGNAL GENERATOR: Outputs test cycles allowing you to check setups and responses directly, without needing extra equipment.


• STANDARD AND PRO OPTIONS: Select between 5 million samples per second for routine diagnostics or 48 million for rapid, intricate signal analysis.


• SAFE 400 VOLT MEASUREMENT: With built-in protection, you can safely test high-voltage circuits without risking the integrity of your scope or setup.


• LONG-LASTING PORTABLE BATTERY: The 1000mAh battery ensures up to four hours of power, allowing you to work uninterrupted in the field.


• COMPACT AND HANDHELD DESIGN: Its lightweight structure fits comfortably in your hand or conveniently attaches to a lanyard, making it easy to transport.


• PRO MODEL PROBE INCLUDED: Comes with a passive probe rated for 100 million cycles and an adapter, so advanced users can start testing immediately.

Product Specifications

• Type: Handheld Digital Oscilloscope with Signal Generator
• Display: 2.8 Inch Screen
• Standard Sampling Rate: 5 Million Samples Per Second
• Standard Bandwidth: 1 Million Cycles
• Pro Sampling Rate: 48 Million Samples Per Second
• Pro Bandwidth: 10 Million Cycles
• Maximum Voltage: 400 Volts (Built-In Protection)
• Battery: 1000mAh, Up to 4 Hours
• Trigger Modes: 3 (Repeating, Single-Event, Irregular)
• Integrated Feature: Signal Generator

What's Included

• 1 x Handheld Digital Oscilloscope
• 1 x Standard Test Probe
• 1 x USB Charging Cable
• 1 x 100 Million Cycle Passive Probe and Adapter (Pro Model Only)

Frequently Asked Questions

Do I need to manually adjust settings to read a signal?
No, the AUTO feature automatically locks onto your signal and displays it on the 2.8-inch screen without any manual input.

What differentiates the standard and pro versions?
The standard version samples at 5 million samples per second with a bandwidth of 1 million cycles for general diagnostics, while the pro version offers 48 million samples per second and a 10 million cycles bandwidth for more complex applications.

Can I safely test high voltage circuits?
Yes, both versions can safely measure voltages up to 400 volts with built-in protection, ensuring secure testing of high-power circuits.

What is the battery life in field use?
The 1000mAh battery lasts up to four hours, allowing you to work through extended sessions without needing to stop for a recharge.
